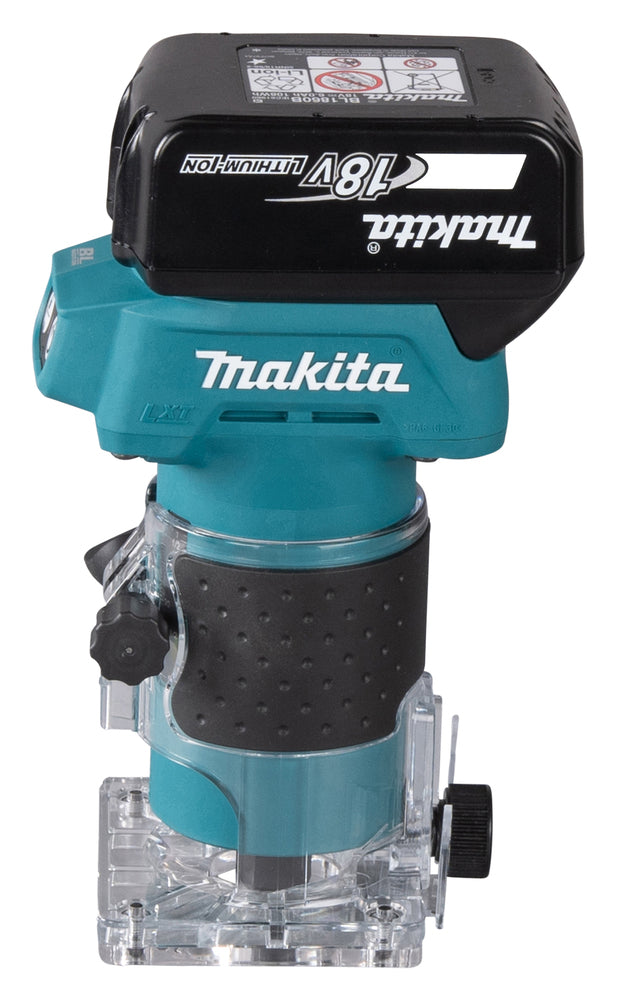

The Makita DRT52Z is a cordless brushless laminate trimmer and palm router powered by Makita's 18V LXT platform. Output rivals Makita's corded trimmers thanks to the brushless motor, and the lightweight palm-grip body keeps it controllable for one-handed edge work on worktops, joinery and cabinetry.
Key Features
- Brushless, maintenance-free motor for longer runtime and lower maintenance
- 30,000 rpm fixed no-load speed for clean cuts in hardwood, softwood and laminate
- 6mm collet as standard, 1/4" collet available (Makita part 763637-1)
- Soft start limits initial torque for smooth, controlled spin-up
- Anti-restart function prevents unexpected start-up when a battery is inserted
- Lock and unlock button with LED indicator shows operating state at a glance
- eXtreme Protection Technology (XPT) for improved dust and water resistance
- 0 to 42mm plunge depth with rack and pinion adjustment
- Rubberised soft grip for comfort during extended use
- Transparent base for clear sight of the cutter and reference line
- Compact 0.95kg bare body for one-handed manoeuvring
Typical Applications
- Trimming high pressure laminate worktop edges
- Edge profiling and rounding over on timber
- Flush trimming veneer and edge banding
- Chamfering and bevelling decorative edges
- Cutting hinge and lock recesses on doors
- Slotting for biscuits and inlays
- Decorative grooving and engraving on cabinetry
- Light freehand routing in joinery and furniture work
Specifications
- Brand: Makita
- Model: DRT52Z
- Voltage: 18V LXT
- Motor: Brushless
- Collet capacity: 6mm (1/4" via optional collet 763637-1)
- No-load speed: 30,000 min⁻¹
- Plunge capacity: 0 to 42mm
- Sound pressure level: 81 dB(A), K = 3 dB(A)
- Sound power level: 89 dB(A), K = 3 dB(A)
- Vibration: 2.5 m/s² or less, K = 1.5 m/s²
- Dimensions: 134 x 90 x 220 mm with 6.0Ah battery
- Net weight (bare): 0.95 kg
- Weight with battery: 1.3 to 1.6 kg depending on battery
- Protection: XPT dust and water resistance
- Barcode: 0197050005106
What's in the Box
- 1 x Makita DRT52Z Brushless Trimmer (bare unit)
- 1 x Trimmer guide assembly (Makita part 122703-7)
- 1 x Straight guide (Makita part 122704-5)
- 1 x Straight bit set 6mm (Makita part 191Y82-4)
- 1 x Chip deflector (Makita part 418647-0)
- Battery, charger and case NOT included, sold separately
Compatible Batteries and Chargers
Compatible with all Makita 18V LXT slide-type batteries including BL1830B (3.0Ah), BL1840B (4.0Ah), BL1850B (5.0Ah) and BL1860B (6.0Ah). BL1850B or BL1860B recommended for sustained routing runtime. Works with all Makita 18V LXT chargers including DC18RC, DC18RD twin-port rapid, DC18SD, DC18SE in-car and DC18SF four-port. All UK orders ship trade priced with fast delivery.
