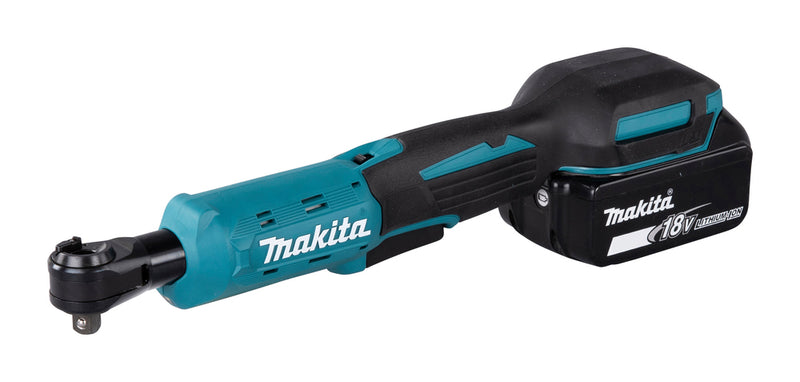

The Makita DWR180Z is a cordless square-drive ratchet wrench powered by Makita's 18V LXT platform. Designed for automotive, plumbing, scaffolding and general mechanical work, it runs nuts and bolts down at 0 to 800 rpm before finishing by hand torque on the ratchet head. Two interchangeable socket drive adapters (3/8" and 1/4") ship in the box, and XPT protection keeps dust and moisture out on site.
Key Features
- True square-drive ratchet wrench (not an impact wrench), 47.5 Nm max torque
- Two interchangeable adapters supplied: 3/8" (9.5mm) and 1/4" (6.35mm) square drive
- Variable speed trigger, 0 to 800 rpm
- Forward and reverse rotation
- Electric brake stops the head quickly when the trigger is released
- Built-in LED job light with afterglow function
- eXtreme Protection Technology (XPT) for improved dust and water resistance
- Slim in-line body fits into confined engine bays and chassis cavities
- Compact and light at 0.85kg bare for extended overhead use
- Battery protection system shuts off power at low charge
- Tightening capacity standard bolt M5 to M12, high tensile bolt M5 to M10
Typical Applications
- Automotive servicing: engine bay bolts, brake calipers, exhaust clamps
- Plumbing and heating: radiator valves, pipe clamps, boiler installation
- Scaffolding and access platform assembly
- HVAC and ductwork installation
- Furniture and shop-fit assembly in tight cavities
- Machine and conveyor maintenance
- Hard-to-reach chassis fasteners where an impact wrench will not fit
- General fabrication and mechanical work on site
Specifications
- Brand: Makita
- Model: DWR180Z
- Voltage: 18V LXT
- Drive square: 3/8" and 1/4" (both adapters supplied)
- Max fastening torque (hard/soft): 47.5 Nm
- No-load speed: 0 to 800 min⁻¹
- Tightening capacity standard bolt: M5 to M12
- Tightening capacity high tensile bolt: M5 to M10
- Sound pressure level: 77 dB(A), K = 3 dB(A)
- Vibration (3 axes): 2.5 m/s², K = 1.5 m/s²
- Dimensions: 369 x 79 x 87 mm with 6.0Ah battery
- Net weight (bare): 0.85 kg
- Weight with battery: 1.2 to 1.6 kg
- Protection: XPT dust and water resistance
- Barcode: 0088381732871
What's in the Box
- 1 x Makita DWR180Z Ratchet Wrench (bare unit)
- 1 x 9.5mm (3/8") square drive socket adapter
- 1 x 6.35mm (1/4") square drive socket adapter
- Instruction manual
- Battery, charger and case NOT included, sold separately
Compatible Batteries and Chargers
Compatible with all Makita 18V LXT slide-type batteries including BL1830B (3.0Ah), BL1840B (4.0Ah), BL1850B (5.0Ah) and BL1860B (6.0Ah). Works with all Makita 18V LXT chargers including DC18RC, DC18RD twin-port rapid, DC18SD, DC18SE in-car and DC18SF four-port. All UK orders ship trade priced with fast delivery.
