MAKDGA504Z
Brand Makita Part No. MAKDGA504Z

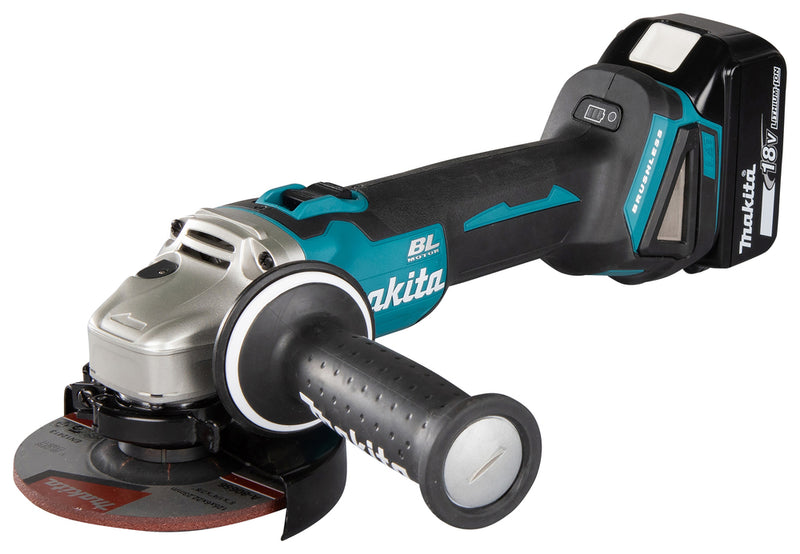

Product Title: Makita DGA504Z 18V LXT Brushless Angle Grinder 125mm (Body Only)

Meta Title: Makita DGA504Z 18V Brushless 125mm Angle Grinder | Bare Unit

Meta Description: Makita DGA504Z 18V LXT brushless 125mm angle grinder. 8,500 RPM, automatic torque drive, XPT dust protection. Bare unit, no battery. Fast UK delivery.


Overview

The Makita DGA504Z is a compact, cordless 125mm angle grinder built around Makita's brushless motor platform. The brushless motor delivers up to 8,500 RPM, well suited to heavy duty grinding applications. Runs on any Makita 18V LXT slide-type battery (sold separately). Not compatible with G-Series batteries.

This is the bare unit only. No battery or charger included.

Key Features

  • Brushless motor for longer runtime, more power, and reduced maintenance vs brushed equivalents
  • Automatic Torque Drive (ADT) adjusts speed and torque during operation to match load conditions: high speed on light work, high torque on heavy cuts
  • Anti-restart function prevents accidental start-up when a battery is inserted with the switch locked on
  • Soft start for smooth, controlled spin-up
  • XPT (Extreme Protection Technology) for use in outdoor or harsh environments
  • Electronic current limiter protects against overload
  • Electric brake for fast wheel stop
  • Slide switch for one-hand operation
  • Tool-less guard adjustment
  • 3-stage LED battery gauge also indicates overheating and overload
  • Rubberised soft grip
  • Rotatable gear housing to suit different cutting and grinding positions

Specifications

Spec Detail
Model DGA504Z
Voltage 18V LXT
Motor Brushless DC
Disc Diameter 125mm (5")
Bore Diameter 22.23mm
Max Wheel Thickness 6mm
No Load Speed 8,500 RPM
Overall Length 362mm
Weight (body only) 2.0 kg
Weight (with battery) 2.6 kg
Noise (sound pressure) 79 dB(A)
Switch Type Slide with lock-on
Battery Type 18V LXT Li-ion (not included)

In The Box

  • Makita DGA504Z body unit
  • 125mm grinding disc
  • Side grip
  • Tool-less guard
  • Lock nut wrench

Compatible Batteries: BL1830B, BL1840B, BL1850B and other Makita 18V LXT slide-type batteries.

        In Stock — Ready to Ship Ships from our warehouse
        Also available for collection — Canterbury & Ramsgate

        Makita DGA504Z 18V Brushless Angle Grinder 125mm - Bare Unit

        Authorised Dealer
        £99.99 ex VAT
        £119.99 inc VAT
        (1)
        Order now for delivery on Monday
        Not sure? Call us on 01843 210459
        Full Manufacturer Warranty
        Warranty Full manufacturer warranty
        Coverage Manufacturing defects. Normal wear parts excluded.
        How to claim Bring to Canterbury or Ramsgate, or contact us for collection.
        Support 01843 210459

        We're an authorised Makita dealer — all warranty claims go directly through the manufacturer.

        Makita DGA504Z 18V Brushless Angle Grinder 125mm - Bare Unit

        £119.99 inc VAT £99.99 ex VAT
